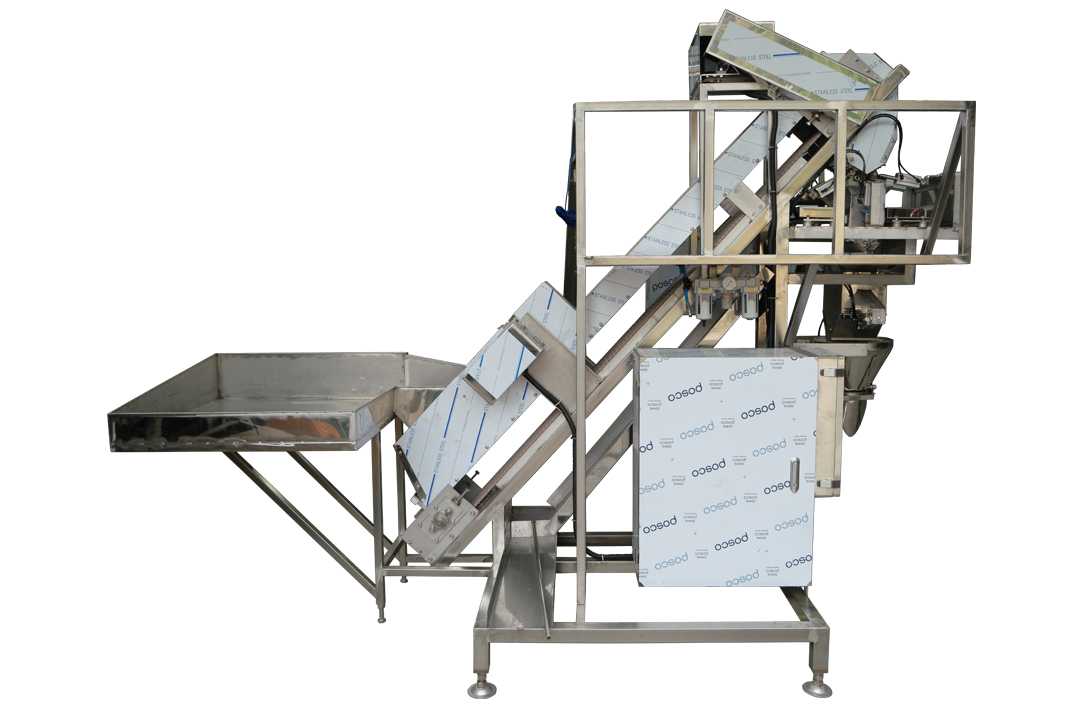

small metering machine Small metering machine-1line type

Page info

Writer 관리자 Comment 0 Hit 1,508 Date 19-05-29 11:02

Article

Specification

Modal

(control)

 type

power

supply

air supply

metering

 scope

 material

size

(w)x(L)x(H)

weight

TS-700

PLC

Electronic circuit



Indicator, Load Cell Weighing

220v,380v

50/60Hz

1kw

max

300kpa,

3kgf/㎤

100~1000g

SUS304

1000 x 3000

x 2200

400kg/unit


 Features

1. The main material of the meter is SUS304, so it can be used in humid places.

2. The conveying conveyor of the meter is composed of TOP chain and SUS material, which does not cause corrosion and

    is manufactured to be suitable for the transfer of wet herbs.

3. The indicator and load cell type control the feed conveyor of the meter in three stages to minimize the

    error when measuring herbs.

4. The herb sensor is installed in the meter's inlet to control the amount of herbs in the meter to minimize

    the breakage of herbs.

5. A two-stage herb blocking device is installed on the top of the meter to reduce the weight error.

6. The cleaning brush is installed at the lower part of the conveying conveyor and rotates automatically

    when weighing.

7. It is designed to increase the working speed by attaching the herb sealing head to the meter outlet so that

    an operator can easily receive the herbs measured in the herb bag.

8. The meter is designed for small-capacity small-package work without the need for automatic sealing.
