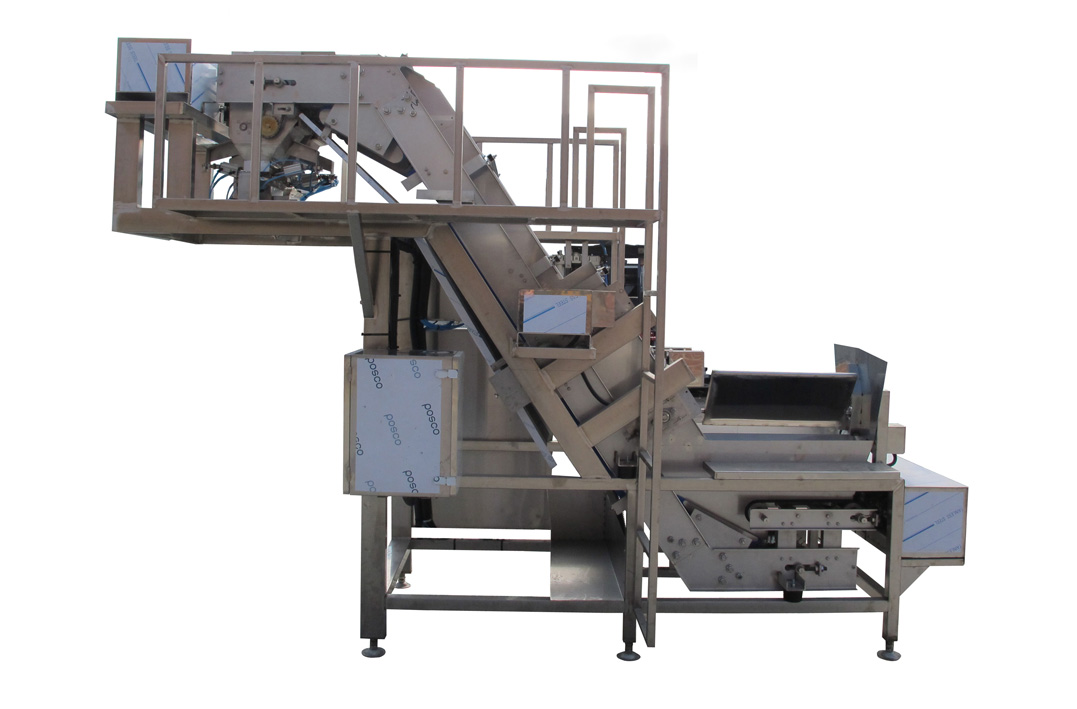

Metering machine
HOME > Products > Metering machine

small metering machine Small metering machine-2line type

Page info

Writer 관리자 Comment 0 Hit 1,947 Date 19-07-26 13:19

Article

Specification

Modal

(control)

 type

power

supply

air supply

metering

 scope

 material

size

(w)x(L)x(H)

weight

TS-7000

PLC

Electronic circuit



Indicator, Load Cell Weighing

220v,380v

50/60Hz

3.8kw

max

650kpa,

7kgf/㎤

100~1000g

SUS304

1160 x 3600

x 2700

1500kg/unit


 Features

1. The main material of the meter is SUS304, so it can be used in humid places.

2. The conveying conveyor of the meter is composed of TOP chain and SUS material, which does not cause corrosion and

    is manufactured to be suitable for the transfer of wet herbs.

3. The indicator and load cell type control the feed conveyor of the meter in three stages to minimize the

    error when measuring herbs.

4. The herb sensor is installed in the meter's inlet to control the amount of herbs in the meter to minimize

    the breakage of herbs.

5. A two-stage herb blocking device is installed on the top of the meter to reduce the weight error.

6. The cleaning brush is installed at the lower part of the conveying conveyor and rotates automatically

    when weighing.

7. It is designed to increase the working speed by attaching the herb sealing head to the meter outlet so that

    an operator can easily receive the herbs measured in the herb bag.
